Overview

The WES-300B microelectromechanical hydraulic servo universal material testing machine is a high-precision material testing equipment that uses hydraulic power source drive, electro-hydraulic servo control technology, computer data acquisition and processing, and can achieve closed-loop control and automatic detection. It consists of four parts: testing host, oil source (hydraulic power source), measurement and control system, and testing equipment. The maximum test force is 300KN, and the accuracy level of the testing machine is better than level 1.

The WES-300B microelectromechanical hydraulic servo universal material testing machine is a product with strong universality, which can meet various standard tests in the national regulations on metal tensile testing. It can also perform tensile, compression, bending, shear and other types of tests on different materials or products according to other standards. It can obtain performance indicators such as tensile strength, yield strength, specified non proportional tensile strength, elastic modulus, etc. of the tested material, and can achieve closed-loop control such as constant rate loading, constant rate deformation, constant rate displacement, and constant rate strain. It can also conduct process qualification performance verification tests on materials or products.

The testing machine is a six column, dual space structure, with a tension space between the upper and lower crossbeams and a compression space between the lower crossbeam and the test bench. The testing space is automatically adjusted by driving the lower crossbeam up and down through the rotation of sprockets and screws. Hydraulic controlled clamping jaws are installed on the upper and lower crossbeams, and standard models are equipped with V-shaped and flat jaws for clamping cylindrical and flat specimens for tensile testing; The bottom end of the lower crossbeam of the standard model is equipped with an upper pressure plate, and the test bench is equipped with a lower pressure plate with a spherical structure, which can be directly used for compression testing.

The design of the mainframe of the testing machine considers the possibility of expanding and assembling other fixtures to complete more experiments. For example, bolt fixtures can be used for bolt tension and load holding, bending fixtures can be used for bending tests of round bars or plates, shear fixtures can be used for shear strength tests of round bars, and anti bending, shear, splitting, elastic modulus meters can be added in compression space for concrete and cement block tests. In addition, various tests of the product can be completed by equipping fixtures such as steel balls, anchor chains, and fasteners.

Parameters

Maximum range: 300KN

Range: 10-100% (full range without gear division)

Level: Level 1/Level 0.5

Minimum resolution: 0.01KN

Maximum stretching/compression space: stretching ≤ 650mm, compression ≤ 550mm

Flat style clamping thickness: 0-15mm

Circular clamping size: 10-32mm

Oil cylinder diameter: 125mm

Working piston stroke: 200mm

Upper and lower pressure plate size: Φ 148mm

Maximum lifting speed of the tabletop: ≤ 70mm/min

Maximum lifting speed of mobile crossbeam: ≤ 300mm/min

Input power supply: AC380V ± 10V/50Hz

Whole machine power: 2.5KW (oil pump motor 1.5KW)

Host dimensions: 710 * 610 * 1900mm

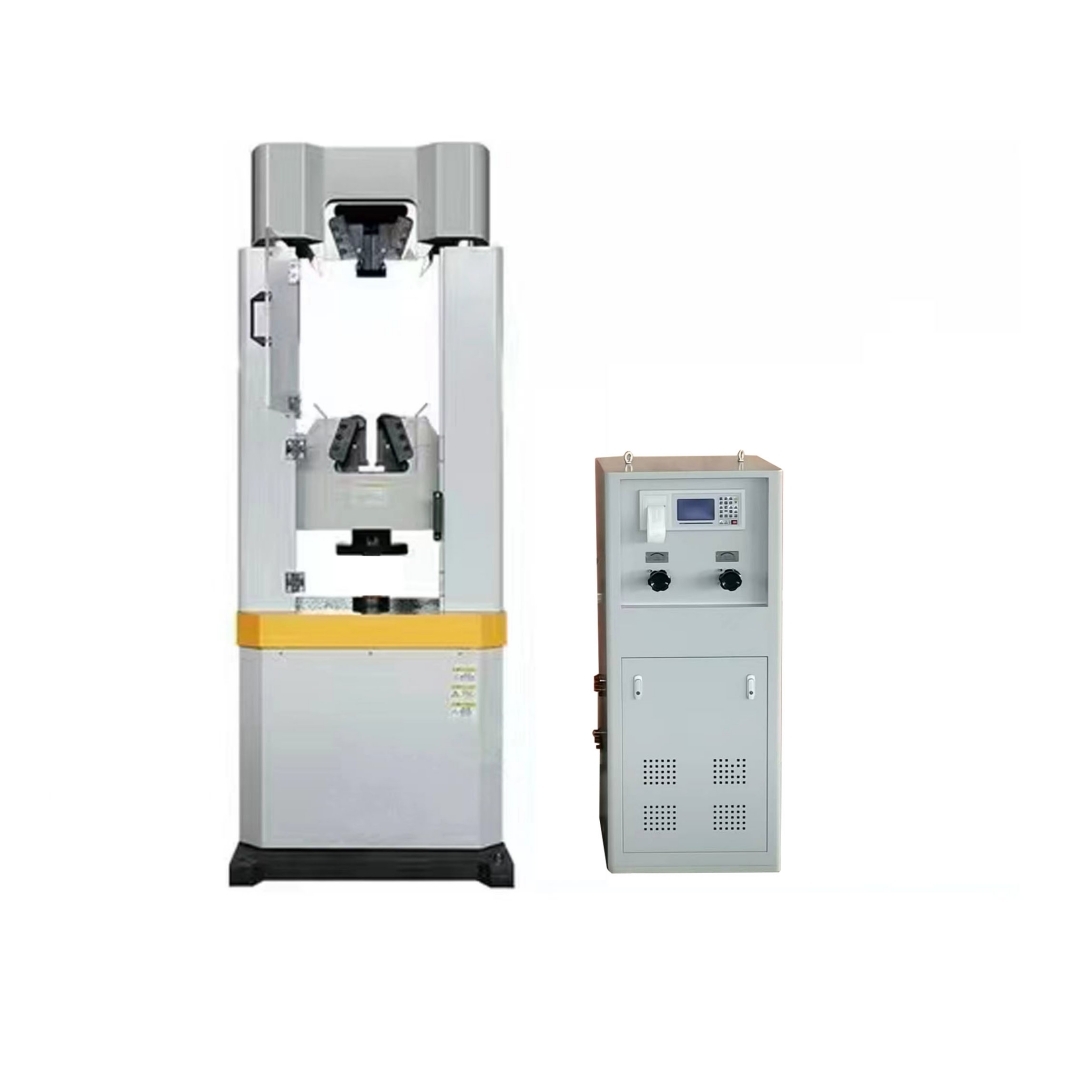

Control cabinet size: Horizontal cabinet： 1100 * 630 * 940mm

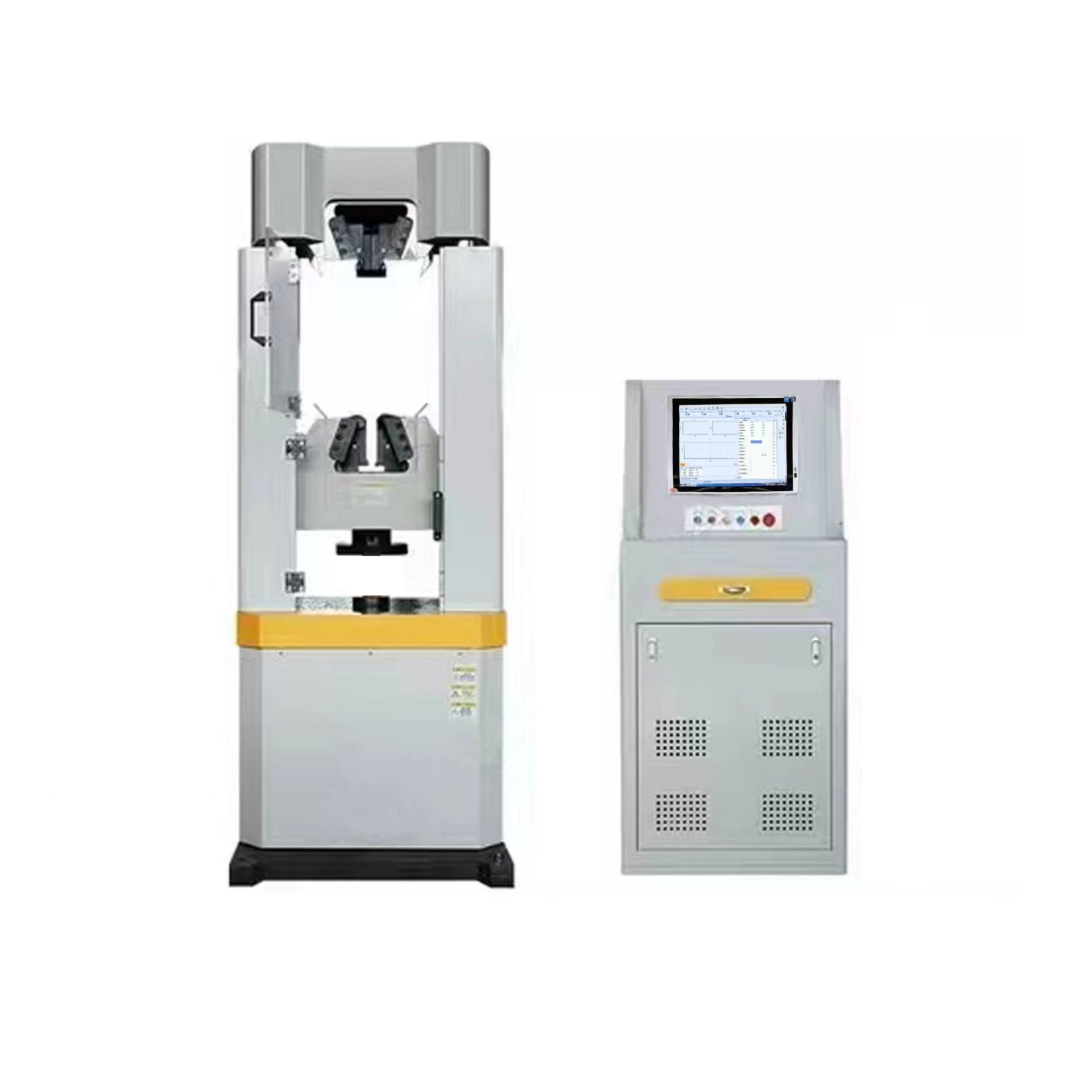

                                  Vertical cabinet： 750 * 560 * 1540mm

Host weight: 1400KG
