1、 The main purpose and scope of application of the testing machine

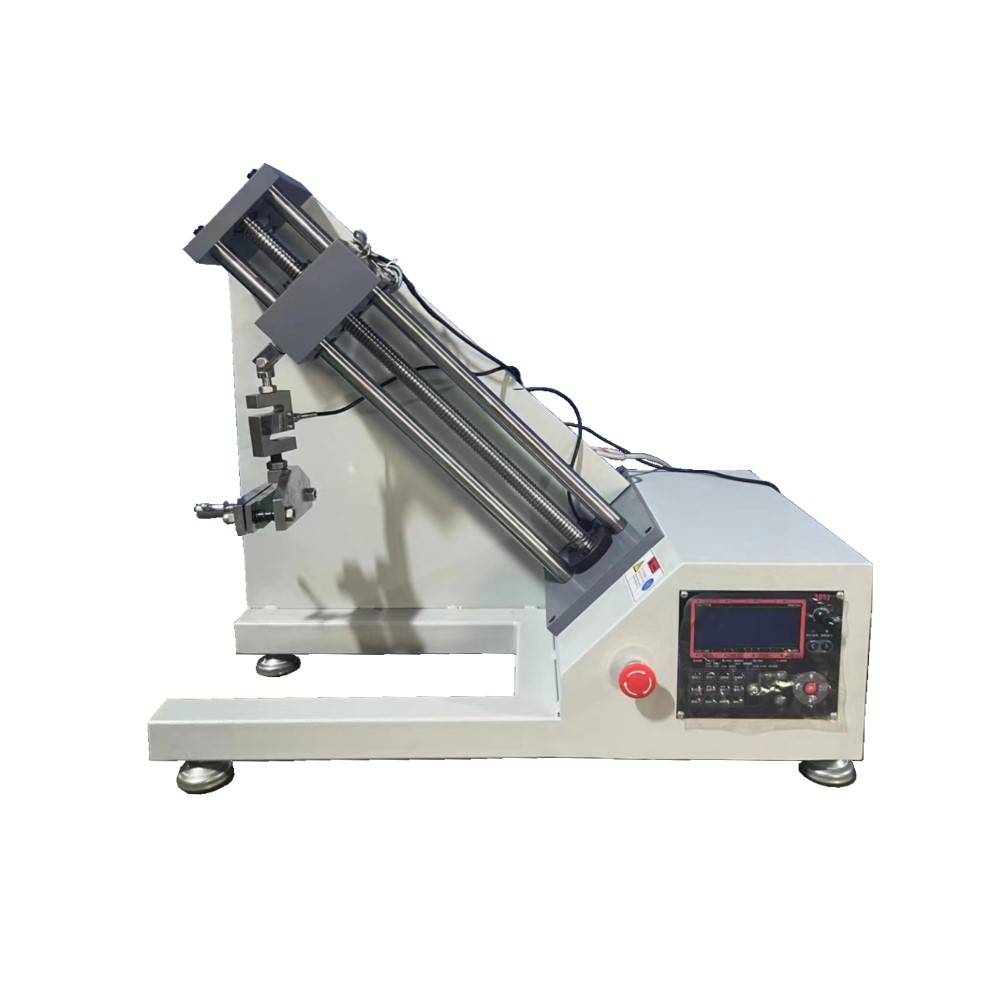

The 90 ° peel tester is a specially designed instrument and equipment based on JGJ/T299-2013. Technical Specification for On site Inspection of Building Waterproofing Engineering. It has functions such as easy operation, reliable quality, adjustable speed, peak display, force value, displacement, and dual display.

2、 Main specifications, technical parameters, and indicators of the testing machine

(1) Maximum test force: BL-500 type 500N

(2) Effective measurement range of experimental force; 10N-500N.

(3) Minimum resolution value of experimental power; 0.1N.

(4) 90 ° peeling distance; 200MM.

(5) Test speed; 5-500mm

(6) Power supply 220V

3、 Working conditions of the testing machine

(1) Within the temperature range of 10-30 degrees Celsius at room temperature.

(2) Relative humidity less than or equal to 80%

(3) In a vibration free environment.

(4) Install correctly on a stable foundation or workbench.

(5) There is no corrosive medium around.

(6) The fluctuation range of the power supply voltage should not exceed ± 10% of the rated voltage.
