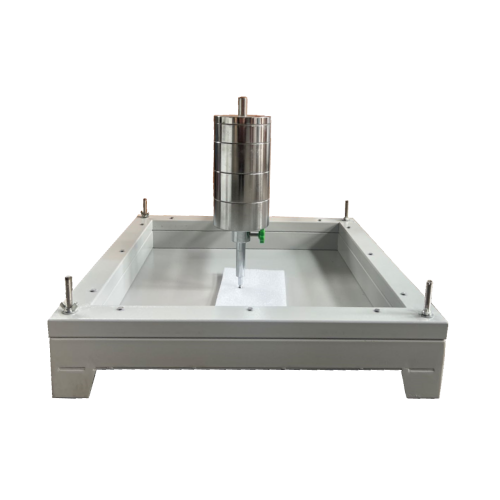

1、 Overview

The static load resistance tester is designed and manufactured based on GB/T328.25-2007 "Test Methods for Building Waterproofing Membrane Part 25: Static Load Resistance of Asphalt and Polymer Waterproofing Membrane". Suitable for testing the penetration performance of asphalt and polymer waterproofing membranes and other waterproofing membranes after static load puncture or impact. This instrument has the characteristics of simple structure and easy operation.

2、 Main technical parameters

1. Stainless steel ball puncture tool: (Φ 10 ± 0.05) mm; hardness: HRC: 50

2. Weight of load rod: 2kg per piece

3. Load plate weight: 3kg per piece; 5kg of 3 pieces

4. Working stroke of spherical puncture tool: 40mm ± 2
